Fixed ODF Fiber Optic Distribution Panel 2U Rack Mounted Patch Panel

Product Categories
Hunan Foconnec Technology Co., Limited
Contact Now

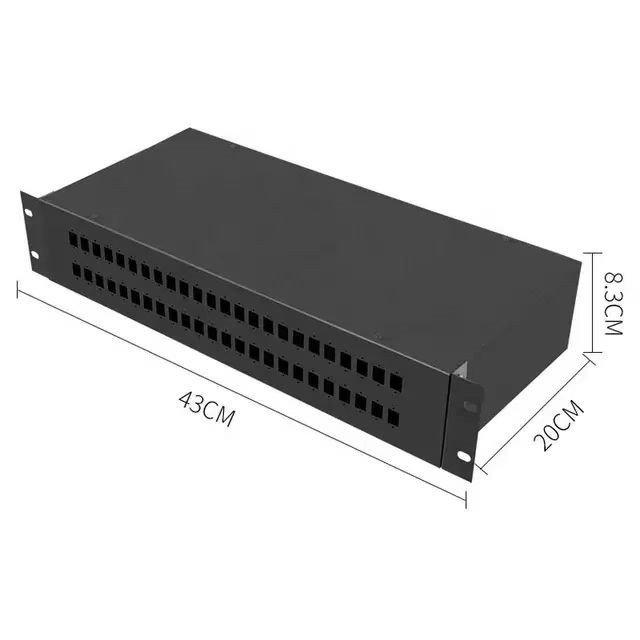

Fixed ODF Fiber Optic Distribution Panel 2U Rack Mounted Patch Panel

Brand Name : Twilight Optic

Model Number : TW-RM02-2U

Place of Origin : Guangdong

MOQ : Negotiable

Price : Negotiable

Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram

Supply Ability : 1000pcs per week

Delivery Time : 7-10 working days

Packaging Details : Inner box and carton box,5 pcs/Carton, Carton Size : 47*47*54cm, G/W: 30KG.

Name : Fiber Distribution Patch Panel

Thickness : 0.8mm,1.0mm,1.3mm

Connector Port : SC FC

Dimension : 430*200*83mm

Type : Fixed

Material : Cold-roll Steel

Capacity : 48 core

Color : Black

Contact Now

Fixed Odf Fiber Distribution Patch Panel 19”2u Rack Mounted 48 Fibers

Description:

19" Rack mount patch panel is mainly used for connection and storage between optical fiber cable

and pigtail in equipment, it can be wall mounted and floor-standing installation. The box body is made

of high quality cold rolled steel,electrostatic spraying, the appearance is beautiful, and the operation

is convenient.

Feature:

  • Cold-roll steel, electrostatic painting

  • ABS plastic tray inside, 12~24 cores per tray

  • Different adapter plate available: FC, SC, LC, ST…

  • Suitable for 19’’ standard optic distribution cabinets

  • With front cover; 4 fiber cable entry ports at rear side

  • Cable entry ports suitable for single fiber, bundle & ribbon fiber cables

  • Reasonable design ensures the cables are in good order

  • Rack mouted fixed type, indoor using;

  • White, black, grey … color painting optional

  • 12 / 24 / 48 / 72 / 96… capacity customised

Technical Specification

Material Cold rolled steel sheet
Thinckness of the steel sheet 0.8mm,1.0mm,1.3mm
Painting method Electrostatic Painting
Color Black
Dimension 430*200*83mm
Capacity 48 Core
Adapter FC/SC/ST/LCD
Atmospheric pressure 70kPa～106kPa
Application Rack Mounted

Fixed ODF Fiber Optic Distribution Panel 2U Rack Mounted Patch PanelFixed ODF Fiber Optic Distribution Panel 2U Rack Mounted Patch PanelFixed ODF Fiber Optic Distribution Panel 2U Rack Mounted Patch Panel

Fixed ODF Fiber Optic Distribution Panel 2U Rack Mounted Patch Panel


Product Tags:

Fixed Fiber Optic Distribution Panel



ODF Fiber Optic Distribution Panel



2U Rack Mounted Patch Panel


China Fixed ODF Fiber Optic Distribution Panel 2U Rack Mounted Patch Panel factory

Fixed ODF Fiber Optic Distribution Panel 2U Rack Mounted Patch Panel Images
