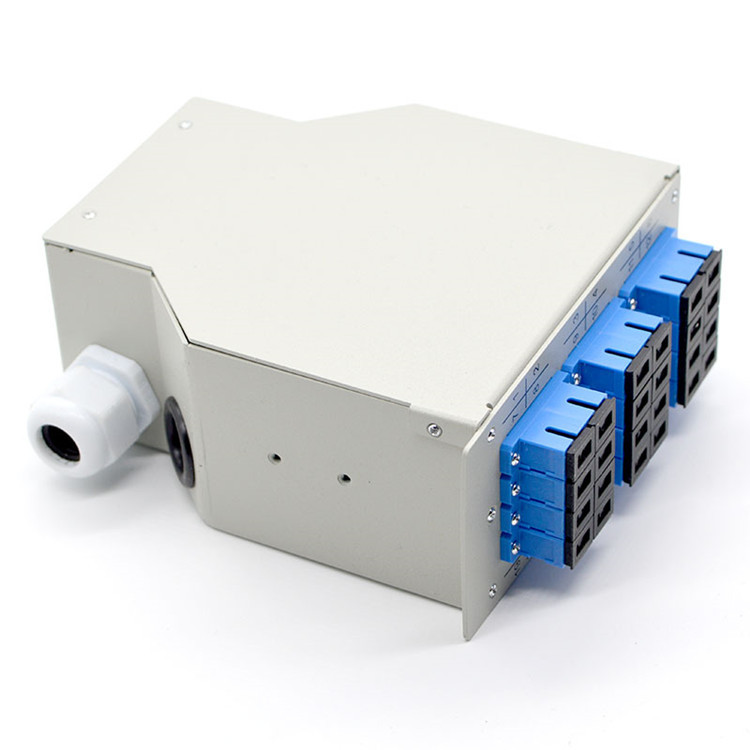

24fibers Din-Rail Fiber Optic Termination Box Cold-Roll Steel 12 Ports Sc Duplex

Brand Name : Twilight Optic

Model Number : TW-DRB05-12SCDX

Place of Origin : Guangdong

MOQ : Negotiable

Price : Negotiable

Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram

Supply Ability : 1000pcs per week

Delivery Time : 7-15 working days

Packaging Details : Inner box and carton box,25 pcs/Carton Carton Size :50*30*30.5CM G/W: 20KG

Name : DIN Rail Fiber Optic Terminal Box

Type of material : Cold-roll steel, electrostatic painting

Number of cable entry points : 2

Number of Splice Trays : 1

Capacity : 24 fibers with SC DX

Mounting : DIN Rail mounting

Protection Class : IP20

Dimension : 131.5x131.7x 52.6 mm

Operating temperature : -40℃ ~ +80℃

Color : Gray

Contact Now

24fibers Din-Rail Fiber Optic Termination Box Cold-Roll Steel 12 Ports Sc Duplex

DIN-Rail type Termination Box comes with 12xSC Duplex adapter holes. This splicing equipment is suitable for distribution and termination of various kinds of optical fiber cables, especially for mini networks in which the optical cables, patch cords, adaptors and pigtails are connected.

Industrial Din-Rail mount fiber patch panels are designed for either to support direct termination or fusion splicing of the fibers. The materials used for the fiber patch panels is of high quality anodized aluminium making it light weight and compact in size. Features designed to save space especially when mounted within enclosures or cabinet with other din rail equipment. The cable entry is from the bottom or top of the enclosure which allows two cables to be secured using the cable gland.


The Din-Rail mountable fiber optic patch panel solve many of the problems installers and integrators have faced when trying to adapt a conventional fiber optic patch panel for use in power, control, SCADA and/or industrial cabinets. The compact size of the Din-Rail patch panel saves space especially when it is mounted within enclosures or cabinet with other din rail mount equipment. This solution keeps the patching in close proximity to the active equipment it serves and minimises cable connectivity in the cabinet.

Quick infomation:

Name Din rail (type) fiber optic splice terminal box.
Model TW-DRB05-12SCDX
Cable port 2 cable ports
Suitable cable diameter 8~24mm
Adapter ports 12 adapter ports
Suitable adapter type SC duplex adapter ( Single mode, Multimode, OM3, OM4 )
Splice capacity 24 cores
Size 131.5x131.7x 52.6 mm
Weight About 1kg

Features
Cold-roll steel, electrostatic painting
Suitable for SC Duplex and LC Quad adapters
2 pcs of cable entry/exit points.
Splicing casette inside with capacity of 24 fibers.

Application:

- Suitable for Pigtail, ribbon and bunch cable connect distribution
- Used for wall-mounted applications
- Used in FTTH, Telecommunications, CATV etc.

24fibers Din-Rail Fiber Optic Termination Box Cold-Roll Steel 12 Ports Sc Duplex

24fibers Din-Rail Fiber Optic Termination Box Cold-Roll Steel 12 Ports Sc Duplex

24fibers Din-Rail Fiber Optic Termination Box Cold-Roll Steel 12 Ports Sc Duplex24fibers Din-Rail Fiber Optic Termination Box Cold-Roll Steel 12 Ports Sc Duplex24fibers Din-Rail Fiber Optic Termination Box Cold-Roll Steel 12 Ports Sc Duplex24fibers Din-Rail Fiber Optic Termination Box Cold-Roll Steel 12 Ports Sc Duplex
