12core Fibre Optic DIN Rail Mount Enclosure With St Duplex Adapter

Name: 12core Fibre Optic DIN Rail Mount Enclosure With St Duplex Adapter
Brand: Twilight Optic
Price: 1 USD

China 12core Fibre Optic DIN Rail Mount Enclosure With St Duplex Adapter factory

Brand Name : Twilight Optic

Model Number : TW-DRB04-6STDX

Place of Origin : Guangdong

MOQ : Negotiable

Price : Negotiable

Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram

Supply Ability : 1000pcs per week

Delivery Time : 7-15 working days

Packaging Details : Inner box and carton box,20pcs/ctn,Carton size:13.9kg,GW 41*41*37cm

Name : DIN Rail Fiber Optic Splice Termination Box

Material : Cold-roll steel, electrostatic painting

cable entry port : 2

Capacity : 12core

Dimensions : 125*128*36mm

Weight : 1kg

pigtail entry/exit ports : 12

Adapter : ST Duplex

Color : Light Gray

Application : Indoor network

Contact Now

12core Fibre Optic DIN Rail Mount Enclosure With St Duplex Adapter

DIN-Rail Fiber Splice Box is suitable for 6-Port SC Duplex Adapter, ST Duplex Adapter, LC Quad Adapter, and it is available for the distribution and terminal connection for various kinds of optical fiber system, especially suitable for mini-network terminal distribution, in which the optical cables, patch cores or pigtails are connected.

Feature

► Cold-roll steel, electrostatic painting

► Suitable for different adapters: FC, SC, ST, LC …

► 2pcs cable entry/exit ports; 6pcs pigtail entry/exit ports

► Splicing module of 12 fibers inside

► Max. 6pcs duplex adapters can be loaded

Specification:

Dimension	Material	Adapter port	Splicing capacity	Cable port	Application
12512836mm	Cold-Roll Steel	6 ST Duplex	Max. 12 fibers	2 ports	DIN rail mounted

Accessories:

Item	Name	Specification	Unit	Qty
1	Heat shrinkable protection sleeves	452.61.2mm	pcs	As per using capacity
2	Cable tie	3*120mm white	pcs	2

12core Fibre Optic DIN Rail Mount Enclosure With St Duplex Adapter

Application

Suitable for Pigtail, ribbon and bunch cable connect distribution

Used for wall-mounted applications

Used in FTTH, Telecommunications, CATV. etc

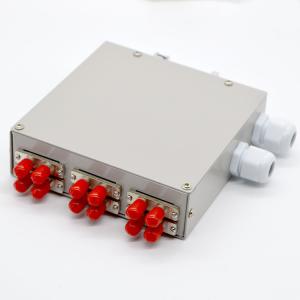

12core Fibre Optic DIN Rail Mount Enclosure With St Duplex Adapter Images
